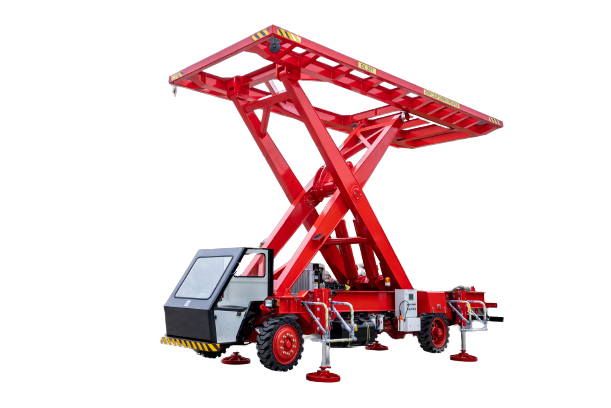

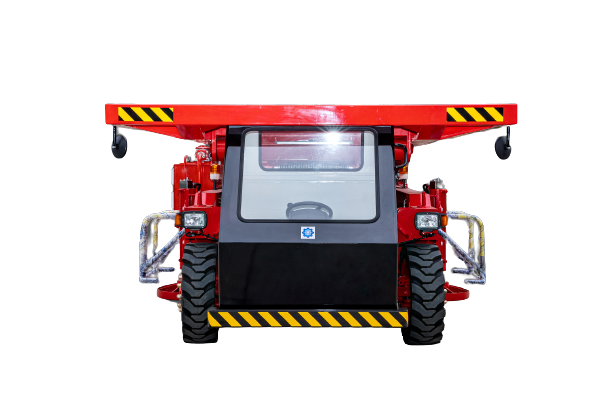

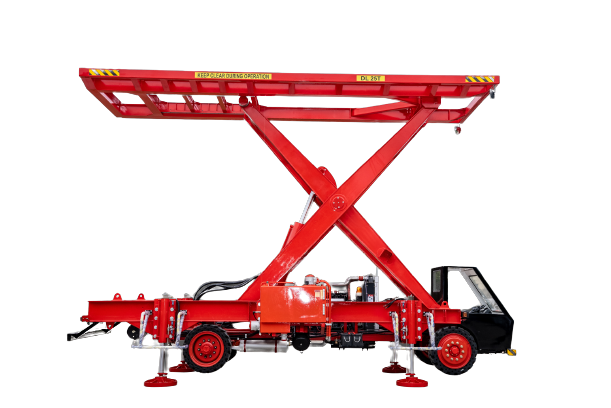

Mobile Deck Lifter
The mobile deck lifter is designed to raise or lower the deck of Ro-Ro ship quickly and efficiently to maximize the load vessel greatly. The deck lifters are designed and manufactured based on leading design ideas and advanced technology, which filled the gap of shipbuilding industry in our country, and obtained the utility model patent certificate. The device is simply in design, firm in structure and simple in operation. The rear view mirror's foldable design increases the operating angle of the cab operator.
The new mobile deck lifter has four-wheel steering mode and two - wheel steering mode. The two steering modes are achieved by one-button switch, and the wheels can achieve ±90 degrees of free rotation in four - wheel steering mode. The deck lifter can realize three kinds of driving functions: straight, oblique and sideway, which facilitates the deck lifter to reach the destination quickly, and improves the efficiency and safety of the operation.
Four Wheels Steering Mode

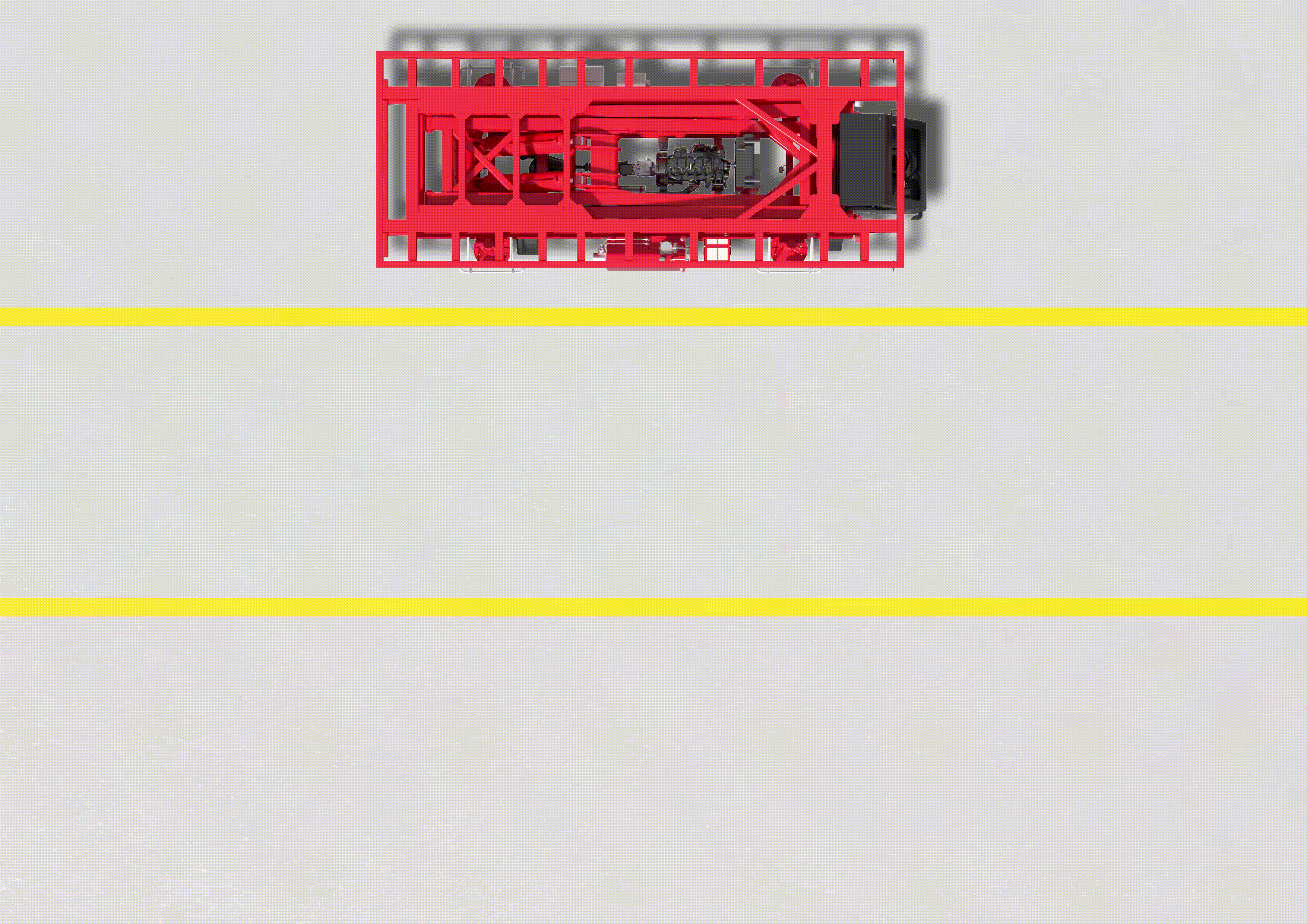

Transverse Drive
The wheels can turn ±90°, enabling the vehicle to move sideways without changing the orientation of the vehicle body.
Side Drive
The wheels can turn at angles ranging from 0° to ±45°, enabling the vehicle to move diagonally (left or right) while maintaining the original orientation of the vehicle body.
Ultra-small Radius Steering
Enables direct 90° steering with exceptional maneuverability for navigating around obstacles like pillars.

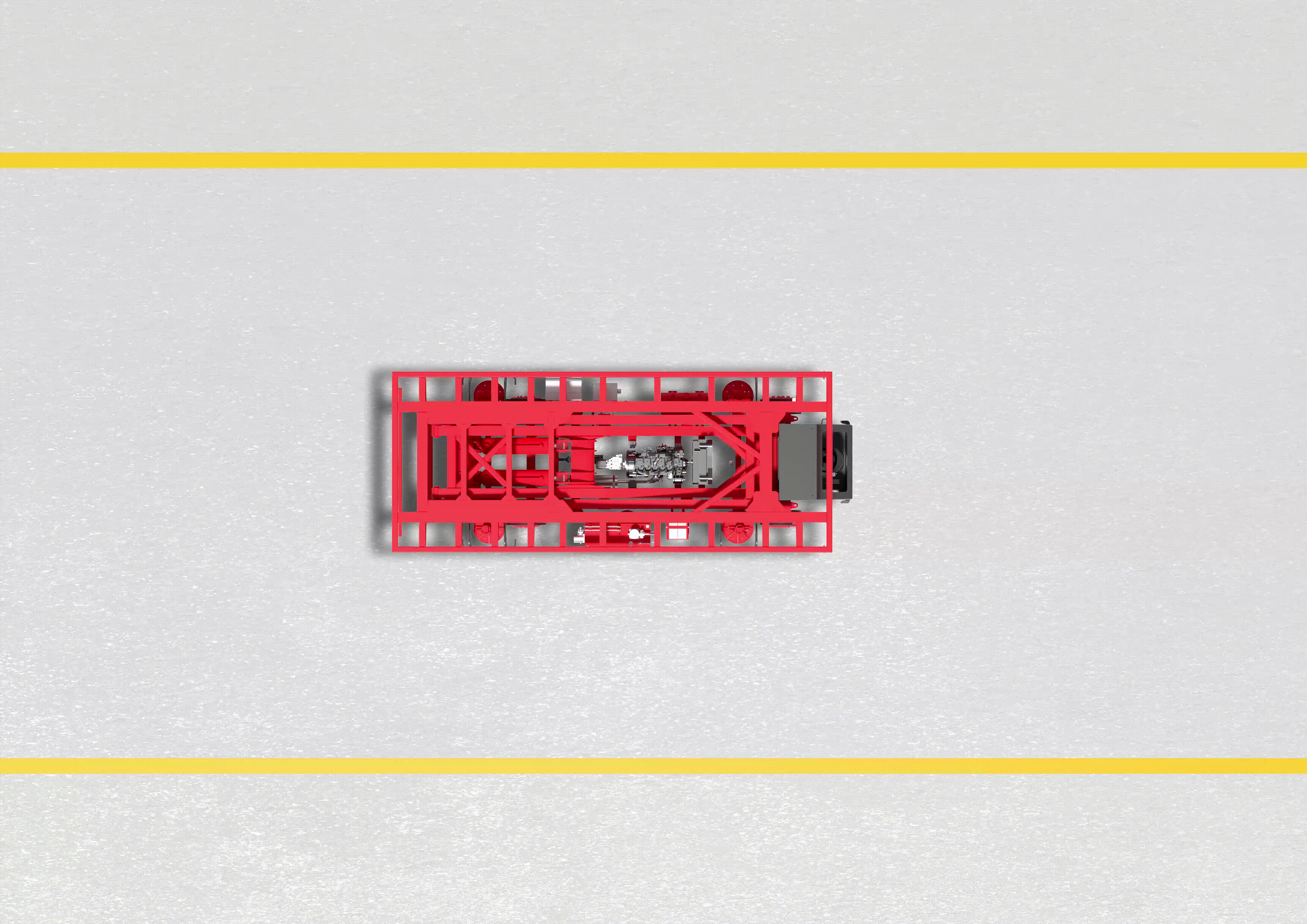

Center Steering
Enables 360° on-the-spot rotation.

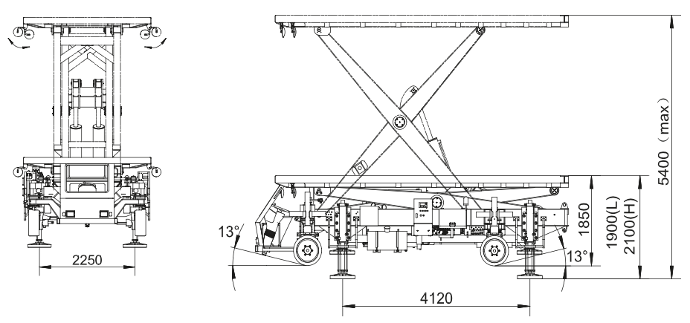

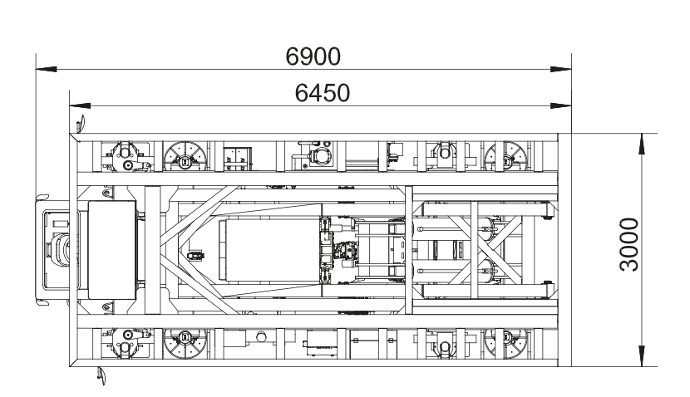

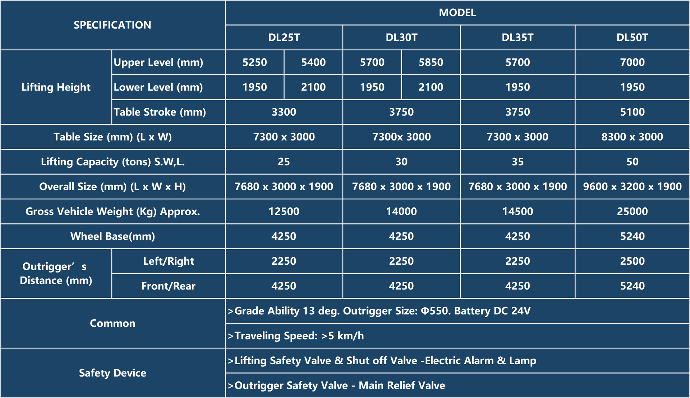

Particulars of mobile deck lifter normal type S-type
Advantages
High lifting speed is about 3.0-5.0m per minute.
Main structure is integrated by I-shape steel bars and square steel bars which are with high mechanical strength and light weight.
Equipped with professional linear sensor which can indicate lifting height accurately.
Four supporting cylinders are supported by independent oil circuit to ensure steady and accurate movement during the operation.
The bottom of supporting cylinder is hinged with spherical linkage which enables automatic centering.
Hydraulic circuit with oil temperature management.
The traveling system is driven by hydraulic oil with stepless speed changing, and is easy to drive.
Equipped with bumpers for collision protection.
Equipped with hydraulic oil circuit explosion protection device to prevent accident falling and ensure safety.
Adopted the high quality professional car paint spraying.
Perfect electrical interlock protection, preventing the man-made damage and risk caused by the uninteded operation of the operating staff.
